AN10 (-10) Stainless Braided PTFE Hose, HEL Performance, Sold by the Meter
AN10 (-10) Stainless Braided PTFE Hose, HEL Performance, Sold by the Meter is backordered and will ship as soon as it is back in stock.
Pickup available at Shop location
Usually ready in 1 hour
Details
Details
Most orders ship same day.
CA Residents: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
AN10 (-10) Stainless Braided PTFE Hose, HEL Performance, Sold by th...
AN10 (-10) Stainless Braided PTFE Hose, HEL Performance, Sold by the Meter is backordered and will ship as soon as it is back in stock.
Description
Description

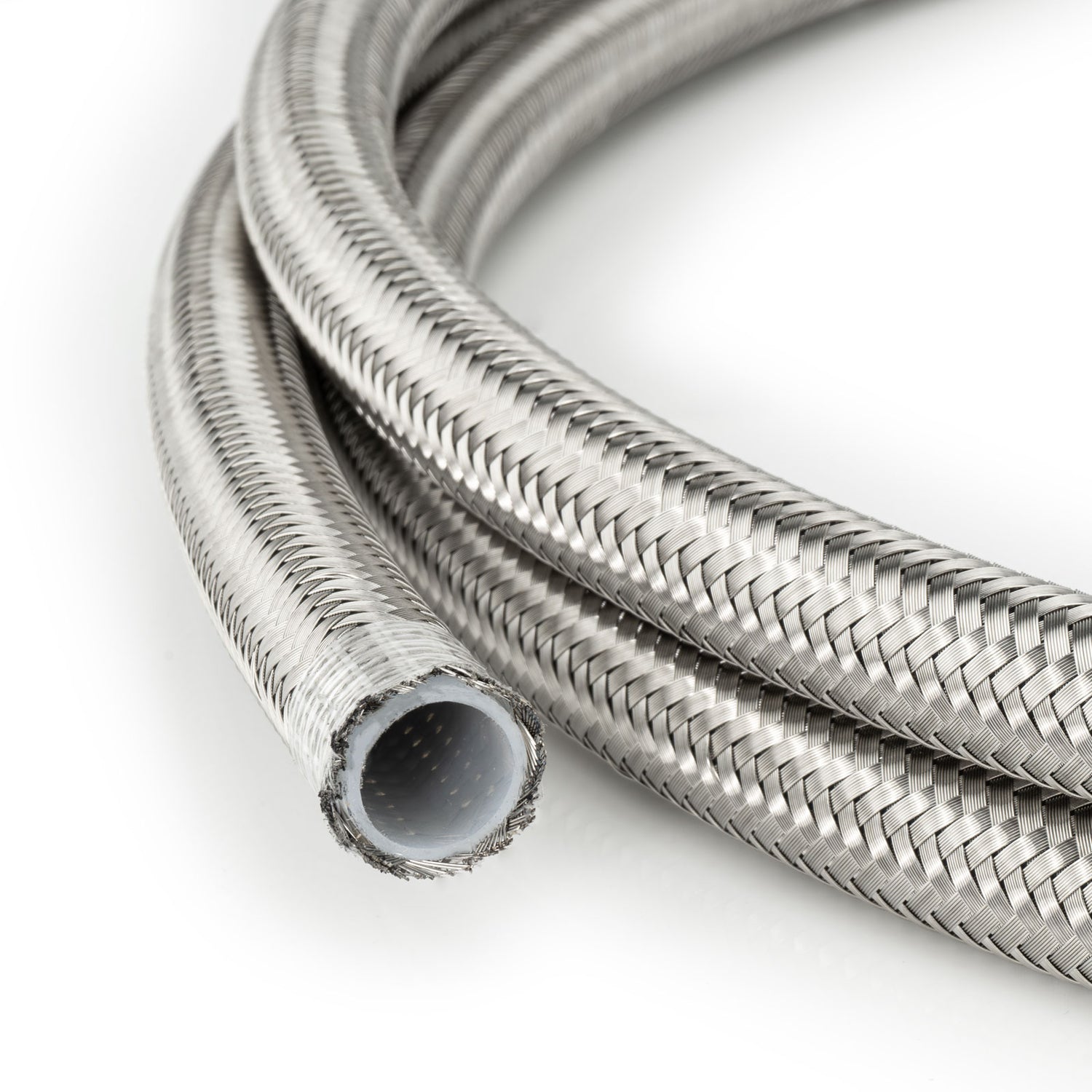

HEL Performance AN10 (-10) PTFE-lined braided hose with a stainless steel overbraid. Lightweight and flexible, it handles high pressures and extreme temperatures in fuel, oil, coolant, and brake systems, and the stainless braid resists corrosion and high-alcohol fuels. HEL braided hose has been proven in events including Global Time Attack, BTCC, Pikes Peak, Drift Masters, and Grid Life.
The PTFE liner acts as a vapor barrier, so it is the right choice for any fuel line routed inside the vehicle. It also keeps the hose from hardening, cracking, or fracturing over time.
Important: PTFE hose only works with PTFE hose ends, not braided rubber hose ends. Use our AN10 PTFE AN fittings.
Sold by the meter. A quantity of 3 ships as one continuous 3-meter length.
Specifications
| Hose Type | PTFE-lined stainless steel braided hose |
| AN Hose Size | AN10, -10 |
| Inside Diameter | 1/2" (13mm) |
| Outside Diameter | 5/8" (16mm) |
| Core | PTFE |
| Overbraid | 303/304 stainless steel |
| Outer Cover | None |
| Temperature Range | -94°F to 482°F (-70°C to 250°C) |
| Operating Pressure | 2,000 PSI (137.9 bar) |
| Burst Pressure | 6,000 PSI (413.7 bar) |
| Minimum Bend Radius (90°) | 2.6" (65mm) |
| Fluid Compatibility | Gasoline (including E5, E10 and E85), race fuel, methanol, diesel, nitrous oxide, engine and hydraulic oil, air, CO2, coolant, water, and DOT brake and clutch fluid |
| Brand | HEL Performance |
