7" ID to 6" ID - Cobra Head Reducing - Rubber

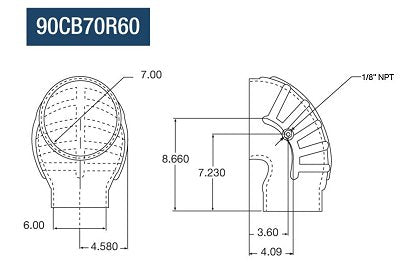

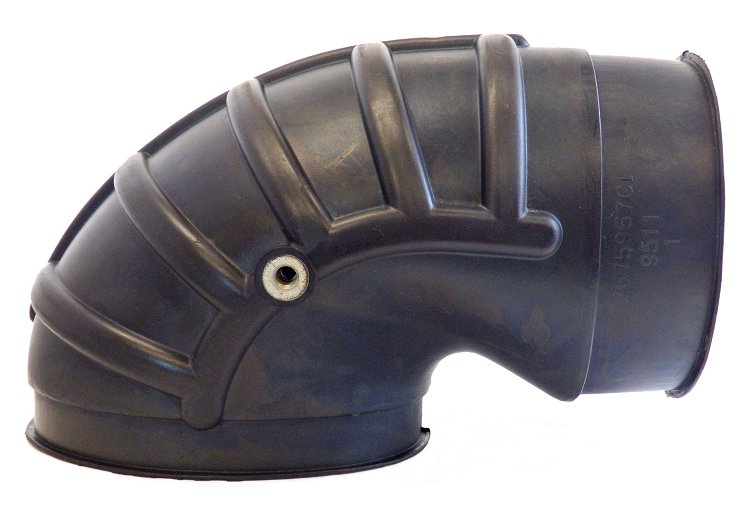

This reducing cobra head elbow is 7" ID on the short end and 6" ID on the long end, and has a 1/8'NPT female pipe thread on one side.

Cobra head elbows are used when clearance is extremely limited, such as when an air cleaner outlet is up against a firewall. There is no other way to make a really tight bend without losing air flow.

How does the cobra head make such a tight bend without increasing turbulence? Because it flares out, creating more volume internally without increasing length.

Use a cobra head anywhere a standard or short-radius elbow will not fit. Temp rated at 250-275F.

Recommended clamps are 94100-0650 on the small end and 94100-0750 on the big end.

Navistar/International 3675957C1
